Liquid Coating and Direct Printing – Single Machines

Our offering includes liquid coating and direct printing machines for the following applications:

Coating, filler, glue, hot melt, hardener, direct printing

We develop application-specific solutions for each of these applications – from simple manual operation through to higher-level electronic control.

Liquid Coating and Direct Printing – Single Machines

  • ULX

  • Direct printing machine

Your Advantages at a Glance

  • Modular machine design for all application requirements

  • Flexible adaptation thanks to optional components, such as pumps and filling systems

  • Fast cleaning

  • High availability thanks to low-maintenance and service-friendly technology

  • Simple and ergonomic handling

  • Continuous research and development  – for products that are always state-of-the-art

  • Versatile applications in a wide range of industries and on a broad spectrum of substrate materials

  • Simple integration in existing production lines thanks to modular design

  • Service-friendly design

  • Precise dosing

  • Flexible repeat lengths

  • Easy retooling

  • Fast throughput – ideal for just-in-time delivery

  • High cost efficiency even with small batch sizes

  • State-of-the-art PC-based control technology

  • As yet unequalled lengthwise and crosswise pin-point register accuracy

Sample Applications

Furniture and furniture supplier components

Flooring

Doors


Wood-based materials

Veneered wood-based boards

Panels


Labelling plates

Composite materials and elements

PU foam finishing


Plasterboard finishing

Our Machines

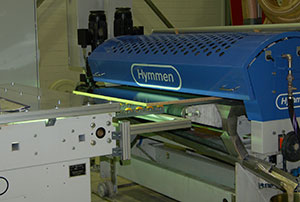

ULX CombiCoater

Roller application machine for single-sided application of liquid media – diluted, solvent-based and radiation-curing coating systems.
Flexibility, e.g. using belt or roller conveyors.
Width: up to 1,700 mm.



RSU

Smoothing and filler machine for
filling splices and pores.
Combination of roller application
with subsequent smoothing.
Top filling quality
thanks to high-performance drives.
Width: up to 1,700 mm.



UME - UML

Roller application machine available with either single-sided
or double-sided application of liquid media–diluted, solvent-based and
radiation-curing coating systems.
Highly cost-efficient due to short cleaning times.
Width: up to 2,300 mm.

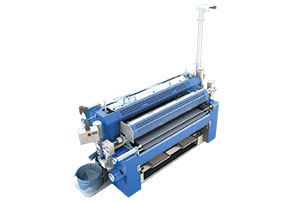

UMS

Smoothing and filler machine for
filling splices and pores.
Combination of roller application
with subsequent smoothing.
For high production speeds
up to 120 m/min.
Width: up to 2,300 mm.



PFC ProfiCoater®

The complete one-man coating line for
the application of solvent-free UV coatings.
A complete coating line
covering 25 m2, scalable to requirements.
Up to 70% cost savings compared to
spraying.





MTC MultiCoater

Curtain coater with patented
Hymmen curtain coating technology.
Universally suitable for use with coatings, glues,
dispersions and adhesives.
Perfect surfaces with
extremely economical application quantities
and uniform application.




DCP DecoPrint DCE

Working widths from 750 to 2,300 mm
Repeat lengths from 999 to 2,041 mm
Feed speeds up to 120 m/min.
Board thicknesses between 2 and 50 mm (or more), with tolerances based on the respective standards



TLA

Four-roller glue application machine for material widths of 850 mm to 1,600 mm.
Available with single- or double-sided glue application.
Precise dosing and even glue application.



TLZ

Four-roller hardener application machine
for working widths of
850 mm to 1,600 mm.
Modular machine design suitable for
all requirements.
Low-maintenance and service-friendly
technology.




UMA

Four-roller glue application machine for material widths of 1,400 mm to 2,800 mm.
Double-sided glue application with high-precision adjustment of application quantity.
Modular design for integration in press lines.



UMZ

Four-roller hardener application machine for material widths of 1,400 mm to 2,800 mm.
Single- or double-sided application of hardener.
High-precision application from 2 g/m2.
Modular design for integration in press lines.



UMT

Heavy-duty hot-melt application machine
for a range of adhesive systems.
High cost efficiency thanks to immediate
further processing of workpieces;
high production output
thanks to high through-put speeds.
Application single- or double-sided.




UVM

Optimum energy utilisation
thanks to targeted radiation
on the material.
Easily expandable thanks to modular design.
Swivel reflector ensures production reliability.
Compact design
- minimum footprint.



DST

Nozzle duct with high
air speed
for intensive curing.
Wide diversity of designs available for
a broad range of applications.
Modular design enables
wide range of dryer lengths.

Hymmen - Liquid Coating and Direct Printing - Single Machines

Hymmen - Calander Coating Inert (CCI)

Selected End Products

Directly Printed Furniture Panels



Coated Concrete Slabs



Coated Fibre-cement Boards



Coated Furniture Panels



All brochures on our liquid coating and direct printing single machines available here to download
